BAKING EQUIPMENT — CONVECTION OVEN
5-Tray Convection Oven
HEA-5RT (Electric)
HGA-5RT (Gas)
Touch
Rear Fan
Rotary
Five-tray commercial rotary convection oven with a rear-mounted reversing fan and an internal rack that rotates during baking. The touchscreen control panel stores up to 99 baking programs.
CAPACITY
5-Tray
TRAY SIZE
400 × 600 mm
TEMPERATURE
30 – 300℃
ENERGY
Electric / Gas
— 02 — PRODUCT OVERVIEW
About the 5-Tray Rotary Touch Convection Oven
Manufactured in Foshan, China by one of GLEAN’s manufacturing partners, the HEA-5RT / HGA-5RT is a commercial convection oven available in electric and gas-fired versions. It holds five 400 × 600 mm baking trays on a complete internal rack that rotates during baking. It combines the rear-mounted fan and rotating-rack configuration of the HEA-5R / HGA-5R with a touchscreen control panel that stores up to 99 baking programs.
The rear-mounted fan circulates hot air through the baking chamber and includes a reversing function. During baking, the complete five-tray rack rotates, changing the position of each tray within the chamber. The automatic spray function allows the spray duration to be set when a recipe calls for added moisture, while the double-glazed door and interior lighting allow the chamber to be observed during operation.
The touchscreen control panel allows adjustment of baking time, temperature, interior lighting, and spray duration, and can store up to 99 baking programs. The interface displays operating status, time, and temperature values. Operating from 30 to 300°C, the oven can be supplied with an optional stainless-steel stand on four lockable castors, with storage for five additional 400 × 600 mm baking trays. Within GLEAN’s 5-tray range, it is the touchscreen rotary configuration for workflows that regularly use multiple tray positions and need to store more than six commonly used baking programs.
— 03 — TECHNICAL SPECIFICATIONS
Technical specifications
Model
HEA-5RT
Voltage
380V / 3-phase
Frequency
50Hz
Total power
8.7kW
Tray size
400 × 600 × 50mm
Tray pitch
100mm
Temperature
30 – 300℃
Dimensions
920 × 1120 × 900mm
Net weight
135kg
Model
HGA-5RT
Voltage
220V
Frequency
50Hz
Electrical power
0.4kW
Gas input
12kW
Tray size
400 × 600 × 50mm
Tray pitch
100mm
Temperature
30 – 300℃
Dimensions
920 × 1120 × 900mm
Net weight
135kg
— 04 — FEATURE HIGHLIGHTS
Rotating Tray Rack
The complete internal tray rack rotates continuously during baking, moving every tray through different positions relative to the rear-mounted airflow. All tray levels rotate together as one assembly while the trays remain in their normal loading positions. On these five- and ten-tray models, the rotating component is the internal rack rather than a roll-in trolley.
Optional Oven Stand
The optional stainless steel stand raises the five-tray oven to a practical loading height and moves on four lockable casters. Its open lower section stores up to five additional 400 × 600 mm baking trays, keeping them close to the oven for loading and unloading. The stand is sold separately and is intended for freestanding installations.

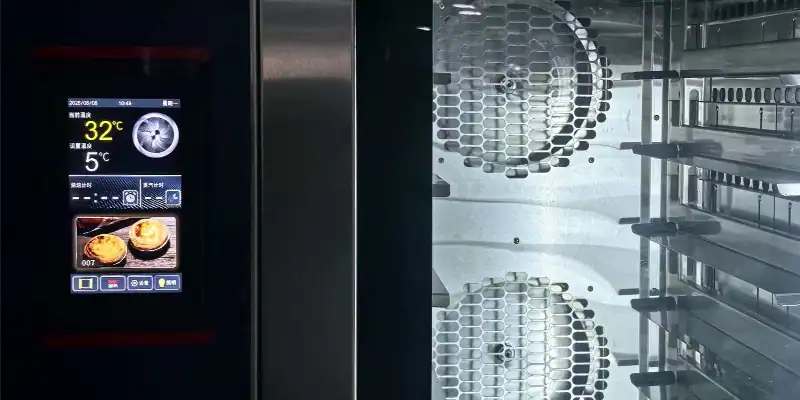

Touchscreen Control Panel
The touchscreen control panel brings baking temperature, time, spray duration, and stored programs into one visual interface. It can save and recall up to 99 baking programs, providing greater program capacity than the 6-program digital panel. On-screen information keeps the active settings visible throughout the baking cycle.
— 05 — CUSTOMISATION OPTIONS
Customisation options
OEM and light customisation available. Minimum order quantity varies by configuration, please reach out to our sales team to discuss your requirements.
Material Grade
Standard 430# stainless steel body and 201# chamber. Optional 304# stainless for body and/or chamber on request.
Energy Type
Electric, or gas with low-pressure LPG (2,800 Pa) and NG (2,000 Pa) as standard. Custom gas configurations available on request.
Tray Configuration
Available in multiple tray capacities, from compact to industrial scale. View our full convection oven range to compare all sizes and configurations.
Control Panel
Mechanical, Digital, or Touch Panel. Programmable presets configurable on Digital and Touch versions.
Branding & Logo
OEM logo on control panel and oven door. Talk to sales about branding options.
Plug Type
12 plug types available, covering EU, UK, AU, US, JP, CN and other major markets. Specify destination on order.
— 06 — FAQ
Frequently Asked Questions
Common questions about the 5-Tray Rotary Touchscreen Convection Oven.
