BAKING EQUIPMENT — CONVECTION OVEN
5-Tray Convection Oven
HEA-5P (Electric)
HGA-5P (Gas)
Digital
Rear Fan
Static
Five-tray commercial convection oven with a stationary rack, rear-mounted reversing fan, and digital control panel that stores up to 6 baking programs.
CAPACITY
5-Tray
TRAY SIZE
400 × 600 mm
TEMPERATURE
30 – 300℃
ENERGY
Electric / Gas
— 02 — PRODUCT OVERVIEW
About the 5-Tray Rear Fan Convection Oven
Manufactured in Foshan, China by one of GLEAN’s manufacturing partners, the HEA-5P / HGA-5P is a commercial convection oven available in electric and gas-fired versions. It holds five 400 × 600 mm baking trays on a stationary internal rack and combines a rear-mounted fan with programmable digital control. Within GLEAN’s 5-tray range, it is the standard programmable configuration for recurring baking routines when six stored programs are sufficient.
The rear-mounted fan circulates hot air through the baking chamber and includes a reversing function. The complete internal tray rack can be removed without tools for routine chamber cleaning. A timed spray function allows the spray duration to be set when required by a recipe, while the double-glazed door and interior lighting allow the baking chamber to be observed during operation.
The digital control panel adjusts baking time, temperature, interior lighting, and spray duration, while storing up to 6 baking programs for commonly repeated processes. Indicator lights show power, heating, spray, and end-of-cycle status, and digital readouts display time and temperature values. Operating from 30 to 300°C, the oven can be supplied with an optional stainless-steel stand on four lockable castors, with storage for five additional 400 × 600 mm baking trays. It is the appropriate 5-tray configuration for workflows that require stored programs but do not require a rotating tray rack.
— 03 — TECHNICAL SPECIFICATIONS
Technical specifications
Model
HEA-5P
Voltage
380V / 3-phase
Frequency
50Hz
Total power
8.7kW
Tray size
400 × 600 × 50mm
Tray pitch
100mm
Temperature
30 – 300℃
Dimensions
850 × 1050 × 750mm
Net weight
123kg
Model
HGA-5P
Voltage
220V
Frequency
50Hz
Electrical power
0.3kW
Gas input
9kW
Tray size
400 × 600 × 50mm
Tray pitch
100mm
Temperature
30 – 300℃
Dimensions
850 × 1050 × 750mm
Net weight
123kg
— 04 — FEATURE HIGHLIGHTS
Removable Tray Rack
The internal tray rack slides out without tools, opening access to the chamber walls and floor for routine cleaning. Operators can remove crumbs, grease, and baking residue from around the tray supports and other hard-to-reach areas, then reinstall the rack before the next production cycle.

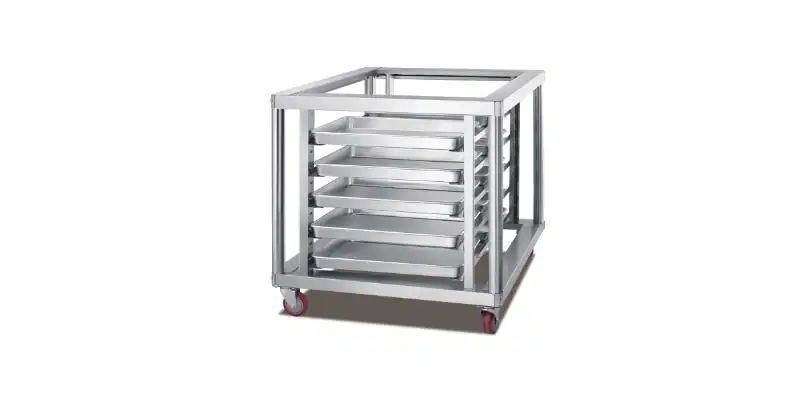

Optional Oven Stand
The optional stainless steel stand raises the five-tray oven to a practical loading height and moves on four lockable casters. Its open lower section stores up to five additional 400 × 600 mm baking trays, keeping them close to the oven for loading and unloading. The stand is sold separately and is intended for freestanding installations.

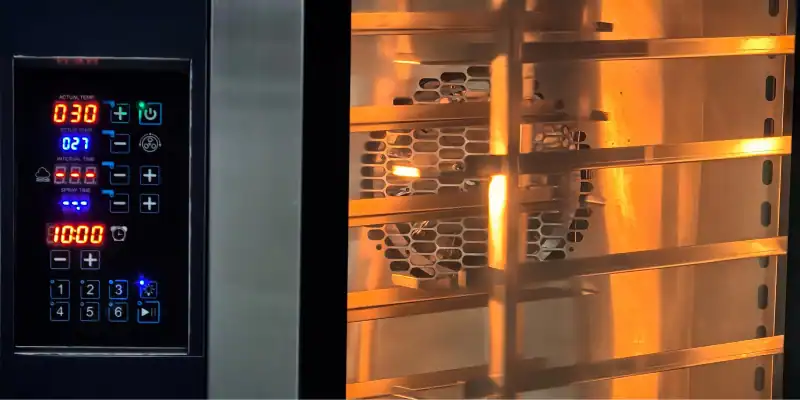

Digital Control Panel
The digital control panel sets baking temperature, time, and spray duration and stores up to 6 baking programs. Operators can recall frequently used settings instead of entering them again for every batch. Digital displays show the active values and remaining time, while indicator lights identify key operating states.
— 05 — CUSTOMISATION OPTIONS
Customisation options
OEM and light customisation available. Minimum order quantity varies by configuration, please reach out to our sales team to discuss your requirements.
Material Grade
Standard 430# stainless steel body and 201# chamber. Optional 304# stainless for body and/or chamber on request.
Energy Type
Electric, or gas with low-pressure LPG (2,800 Pa) and NG (2,000 Pa) as standard. Custom gas configurations available on request.
Tray Configuration
Available in multiple tray capacities, from compact to industrial scale. View our full convection oven range to compare all sizes and configurations.
Control Panel
Mechanical, Digital, or Touch Panel. Programmable presets configurable on Digital and Touch versions.
Branding & Logo
OEM logo on control panel and oven door. Talk to sales about branding options.
Plug Type
12 plug types available, covering EU, UK, AU, US, JP, CN and other major markets. Specify destination on order.
— 06 — FAQ
Frequently Asked Questions
Common questions about the 5-Tray Rear Fan Convection Oven.
